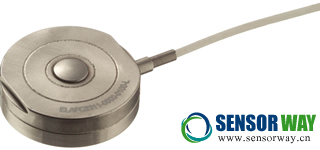

ELAF系列拉壓力傳感器中英文產品介紹
來源:賽斯維傳感器網 發表于 2014/6/16





  Applications: Theatrical Rigging Loads, Assembly Forces, Weighing, Tool Forces, Thrust Measurements, Batch Weighing, Robotics End Effectors, Product Validation Testing, Material Test, Hoist and Winch Loads

  Industries: General Industry

  Description: The ELAF series compression and tension load cells raise the bar for high performance at low cost. Measurement Specialties proprietary Microfused® technology, derived from demanding aerospace applications, employs micro-machined piezoresistive strain gages fused with high temperature glass to a high performance stainless steel force measuring flexure. Microfused® technology eliminates age-sensitive organic epoxies used in traditional load cell designs providing excellent long term span and zero stability. Operating at very low strains, Microfused® technology utilizes strain gages providing gage factors greater than 100, an essentially unlimited cycle life expectancy, superior resolution, exceedingly high over-range capabilities (without the need for stops) and an amplified ratiometric high level 0.5 to 4.5 V output or 20 mV/V bridge output. Microfused® sensors are ideal for your test and measurement applications. From the ultra compact 0.5” diameter B0 and T1 design to the high range 1.25” diameter B2 package, the ELAF provides exceptional flexibility and superior performance. Measurement Specialties’ ELAF Test and Measurement series sensors, unlike most designs, are provided with a "four-bar" design where a flexible diaphragm parallels the measuring flexure. This configuration is far less susceptible to off-axis load components than single diaphragm traditional designs. Shielded, FEP/PTFE insulated instrumentation cabling is provided along with spring steel strain reliefs and full NIST traceable calibration certificates. The ELAF unit is fully thermally compensated and can be configured with a variety of options to fine tune the instrument to your application: select from several standard package geometries. Compensated temperature ranges, input voltages, lead lengths or specify entirely unique combinations of these options.

  Features:

  Compact design: 12.7mm, 15.88mm and 31.75mm diameter [0.5”, 0.625” and 1.25”]
  Compression/tension ranges: from 50 - 10KN [10 - 2000lbf]
  Stainless Steel Body
  Amplified or mV output
  Temperature compensated
  High stability
  Industry standard packaging
  Resists off axis load components
  Full NIST traceable 11 point calibration
  Shielded FEP/PTFE cabling with strain relief
  Variety of options available
  Low cost
  High reliability
  Low deflection
  Robust: high over range
  Low off-axis response


  典型應用: 繩索負載,組裝力,稱重,推力測量,批量稱重,機器人末梢執行器,產品驗證測試,材料測試,起重機和絞車負載

  行業: 工業控制

  產品描述: ELAF系列拉壓力傳感器具有高性能,低成本的特點。源于航天航空業的特殊要求,MEAS利用獨有的微熔技術通過高溫熔解玻璃將微機械壓阻應變片粘合,制造出高性能的不銹鋼力傳感器。微熔技術徹底擺脫了傳統稱重傳感器所使用的限制產品壽命的有機環氧樹脂,從而具有極好的長期穩定性。在形變非常小的情況下,微熔技術利用應變因子大于100的應變片,產品不存在壽命限制,分辨率高,抗過載能力強,0.5 ~ 4.5 V放大輸出,或 20 mV/V 電橋輸出。微熔力傳感器是您測試測量應用的理想選擇。從直徑為0.5” 的超小B0型到1.25” 的B2型,ELAF選擇靈活,性能卓越。MEAS的ELAF系列測試測量專用傳感器采用特殊的“四連桿”設計,用柔性膜片測量形變。不像傳統的單膜片設計,ELAF受非軸向負載影響極小。產品配有屏蔽絕緣線纜,傳感器和電纜連接處彈簧保護,NIST可追溯。ELAF產品經過溫度補償,使用壽命長?蛻艨筛鶕應用配置最適合的ELAF:可選的尺寸,溫度補償范圍,工作電壓,輸出電纜長度。

  特點:

  尺寸。褐睆12.7mm,15.88mm和31.75mm [0.5”, 0.625”, 1.25”]
  拉/壓力量程:50-10KN [10 ~ 2000 lbf ]
  不銹鋼外殼
  放大或mV輸出
  溫度補償
  工業標準封裝
  非軸向負載影響低
  11點校正,NIST溯源認證
  FEP/PTFE屏蔽電纜,連接處彈簧保護
  多種型號可選
  低成本
  可靠性高
  耐用:高過載能力
  偏差小

   ELAF系列拉壓力傳感器更多技術參數及規格書下載請瀏覽:http://ysdinuanwang.com/sensors/124.html

  北京賽斯維測控技術有限公司產品咨詢熱線:010-84775646,84775648。
