Applications: Aerospace, Explosion test benches, Oven monitoring equipment, Robotics and effectors, Laboratory and research

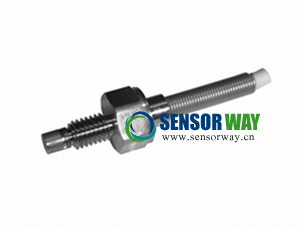

　　Description: The XPM4 is a miniature transducer designed to measure static and dynamic pressure under a wide variety of conditions, including hostile environments. The all-titanium construction and flush diaphragm protect the sensor against most corrosive environments. The XPM4 incorporates Measurement-Specialties’ cutting-edge SanShiftTM technology, which virtually eliminates zero shifts caused by installation torque. The XPM4’s sensing element is a fully temperature compensated Wheatstone bridge configuration made with high stability micro-machined silicon strain gauges which optimize performance, especially at low ranges and high frequencies. All models come with a cable output strengthened by a strain relief spring or with an electrical connector (optional). With many years of experience as a designer and manufacturer of sensors, Measurement-Specialties often works with customers to design or customize sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.

　　Features:

　　Flush diaphragm, all-titanium construction
　　Low installation torque sensitivity
　　M4x1 thread
　　Linearity up to ±0.35% F.S.
　　For static and dynamic applications

　　典型應用: 航空，爆炸測試，烘箱監測，機械人，實驗室和研究

　　產品描述: XPM4小型壓力變送器用于多種工況下的動態和靜態壓力測量，全鈦金屬結構可以應用于大部分腐蝕性環境。XPM4結合了MEAS最新的SanShift技術，幾乎可以消除由于安裝扭矩帶來的零點漂移。傳感器的核心感應元件是一組金屬應變片組成的惠斯通電橋，經過溫度補償，性能良好，尤其在小量程和低頻率時。標準產品為電纜輸出，電纜與傳感器連接處有彈簧保護，可選連接頭輸出。作為擁有多年經驗的傳感器設計和制造商，MEAS常常與客戶合作，按要求定制適合特殊用途和測試環境的傳感器。同時，我們也根據客戶需要提供成套系統。配套元件（傳感器，電源，放大器和數顯系統）配置統一，經過校正，可供客戶立即使用。

　　特點:
　　
　　齊平膜，全鈦結構
　　低安裝扭矩靈敏度
　　M4×1螺紋
　　線性：±0.35% F.S.
　　靜態和動態測量

　　XPM4小型壓力變送器傳感器更多技術參數及規格書下載請瀏覽：http://ysdinuanwang.com/sensors/570.html
　　
　　北京賽斯維測控技術有限公司產品咨詢熱線：010-84775646，84775648。
